Choosing the right wire size for a 50 amp service can be a bit tricky, especially if you're not familiar with electrical wiring. Using the wrong wire size can cause electrical problems and even put your safety at risk. In this article, we'll guide you on how to choose the right wire size for a 50 amp service.
What is a 50 Amp Service?
A 50 amp service is a type of electrical service that is commonly used in recreational vehicles (RVs) and in some homes. It provides 50 amps of power to the electrical system, which is enough to power appliances, lighting, and other electrical devices. A 50 amp service consists of two hot wires, a neutral wire, and a ground wire.
Hot Wires
The hot wires in a 50 amp service carry the electrical current from the source to the electrical devices. They are usually color-coded, with one wire being black and the other being red. The hot wires carry 120 volts each, but when used together, they provide 240 volts of power.
Neutral Wire
The neutral wire in a 50 amp service is the return path for the electrical current. It is usually color-coded white and is connected to the neutral bus bar in the electrical panel.
Ground Wire
The ground wire in a 50 amp service is a safety feature that provides a path for electrical current to flow to the ground in case of a short circuit or other electrical problem. It is usually color-coded green and is connected to the ground bus bar in the electrical panel.

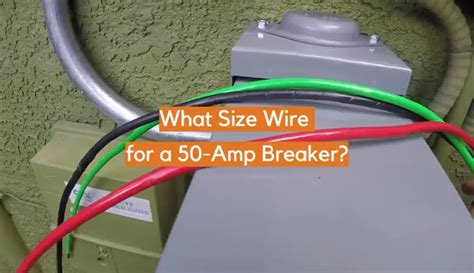

Choosing the Right Wire Size for a 50 Amp Service
Choosing the right wire size for a 50 amp service is crucial to ensure that the electrical system operates safely and efficiently. The wire size is determined by the maximum amperage that the wire can handle without overheating. Here are some tips on how to choose the right wire size for a 50 amp service:
1. Determine the Length of the Wire Run
The length of the wire run is the distance between the electrical panel and the electrical devices that will be powered by the 50 amp service. The longer the wire run, the more resistance the wire will have, which can cause the wire to overheat. You will need to factor in the length of the wire run when choosing the wire size.
2. Determine the Amperage Load
The amperage load is the amount of electrical current that will be flowing through the wire. You will need to determine the amperage load of the electrical devices that will be powered by the 50 amp service in order to choose the right wire size.
3. Choose the Right Wire Size
Once you have determined the length of the wire run and the amperage load, you can use a wire size calculator to determine the right wire size. For a 50 amp service, the wire size should be at least #6 AWG for copper wire or #4 AWG for aluminum wire. However, depending on the length of the wire run and the amperage load, you may need to use a larger wire size.
Tips for Installing a 50 Amp Service
Installing a 50 amp service can be a bit challenging, especially if you're not familiar with electrical wiring. Here are some tips to help you install a 50 amp service safely and efficiently:
1. Turn Off the Power
Before you begin any electrical work, make sure to turn off the power to the electrical panel. This will help prevent electrical shock and other electrical hazards.
2. Use the Right Tools
Make sure to use the right tools for the job, including wire strippers, pliers, and a wire cutter. Using the wrong tools can damage the wire or cause other electrical problems.
3. Follow Local Electrical Codes
Make sure to follow local electrical codes when installing a 50 amp service. This will not only ensure that the electrical system operates safely, but it will also prevent any legal issues that may arise from not following local codes.
Conclusion
Choosing the right wire size for a 50 amp service is crucial to ensure that the electrical system operates safely and efficiently. Make sure to determine the length of the wire run and the amperage load of the electrical devices that will be powered by the 50 amp service. Use a wire size calculator to determine the right wire size, and follow local electrical codes when installing the 50 amp service. By following these tips, you can install a 50 amp service safely and efficiently.
